The Air-Bike LS is the exact airplane designed by Wayne Ison in 1995. It is a light, sturdy
airplane with no bad habits. Ask anyone who has flown one!
Easy to build, inexpensive to complete and an absolute blast to fly. The Air-Bike is an
excellent first airplane to build from plans. Folding wings, brakes, wheelpants and

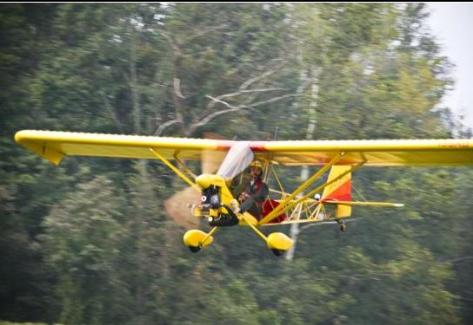

fiberglass wingtips are optional. Air-Bike pictured with all options weighs 320lbs.
airplane with no bad habits. Ask anyone who has flown one!
Easy to build, inexpensive to complete and an absolute blast to fly. The Air-Bike is an
excellent first airplane to build from plans. Folding wings, brakes, wheelpants and
fiberglass wingtips are optional. Air-Bike pictured with all options weighs 320lbs.
| Wingspan |
| Area |
| Specifications |
| 26.75 ft. |
| 54" |
| 120 sq. ft |
| Chord |
| Empty Weight |
| 265-320 lbs. |
| Length |
| 16 ft. |
| 5'-6" |
| Height |
| Brakes |
| Yes |
| Engine |
| Rotax/Hirth 40-50hp |
| Ground Adjustable |
| Propellor |
| Fuel Capacity |
| 5 or 10 US Gal. |
| Performance |
| Takeoff Roll |
| 150 ft. |
| 800-1000 ft./min. |
| Rate of Climb |
| Service Ceiling |
| 10,000 ft. |
| Cruise |
| 60 mph |
| Vne |
| 80 mph |
| 28 mph |
| Stall |
| Landing Roll |
| 200 ft. |
| Endurance |
| 2 hrs. |
| 180 mi. |
| Range |
| Landing Gear |
| Fixed Conventional |
| Control System |
| 3-Axis |
| Kit Details |
| Build Time (plans) |
| 450 hrs. |
| Fuselage |
| Welded 4130 Steel |
| Wing Structure |
| Spruce and Plywood |
| Empennage Structure |
| Welded 4130 Steel |
| Elevator Control |
| Teleflex Cable |
| Aileron Control |
| Direct Pushrod |
Youtube video courtesy gheegrose
Air-Bike LS
Check out the video below!
Air-Bike LS
Plans $ 150
Weld Package $ 2950
Wood Wing Kit $ 2675
Includes fabric, stapler, glue and hardware.
Complete Kit $ 7,495
Includes all above plus everything to complete
except engine, prop, paint & Instrumentation.
Plans $ 150
Weld Package $ 2950
Wood Wing Kit $ 2675
Includes fabric, stapler, glue and hardware.
Complete Kit $ 7,495
Includes all above plus everything to complete
except engine, prop, paint & Instrumentation.
| Useful Load |
| 295 lbs. |
