| Wingspan |
| Area |
| Specifications |
| 54" |
| 138 sq. ft |
| Chord |
| Empty Weight |
| 400 lbs. |
| Length |
| 18 ft. |
| 5'-8" |
| Height |
| Brakes |
| Yes |
| Engine |
| Rotax, Hirth 50-65hp |
| 62x38, 64x36 |
| Propellor |
| Fuel Capacity |
| 10 US Gal. |
| Performance |
| Takeoff Roll |
| 200 ft. |
| 600 ft./min. |
| Rate of Climb |
| Service Ceiling |
| 10,000 ft. |
| Cruise |
| 70 mph |
| Vne |
| 100 mph |
| 32 mph |
| Stall |
| Landing Roll |
| 250 ft. |
| Endurance |
| 2 hrs. |
| 175 mi. |
| Range |
| Landing Gear |
| Fixed Conventional |
| Control System |
| 3-Axis |
| Kit Details |
| Build Time (plans) |
| 500 hrs. |
| Fuselage |
| Welded 4130 Steel |
| Wing Structure |
| Spruce & Plywood |
| Empennage Structure |
| Welded 4130 Steel |
| Elevator Control |
| Teleflex Cable |
| Aileron Control |
| Direct Pushrod |

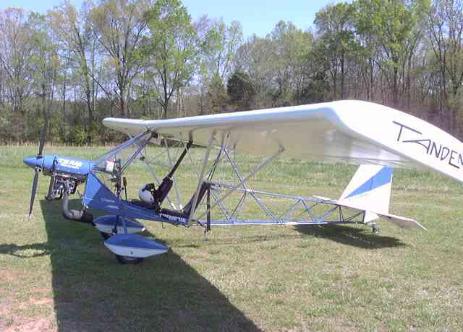

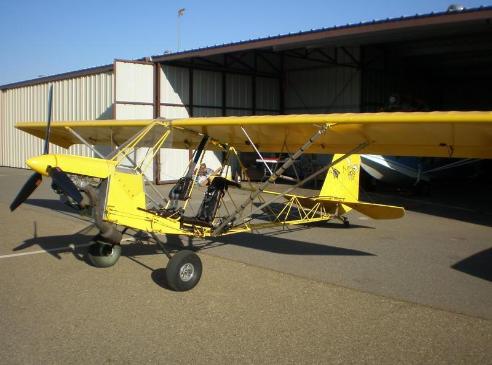

The Tandem Air-Bike allows you to share the fun. Thicker spars increase the useful load for the largest of
pilots. Strong and responsive, the Tandem may be the perfect taildragger trainer. Full dual controls,
optional wing fold and an honest 500lb. useful load. Brakes, wheelpants and fiberglass wingtips optional.
pilots. Strong and responsive, the Tandem may be the perfect taildragger trainer. Full dual controls,
optional wing fold and an honest 500lb. useful load. Brakes, wheelpants and fiberglass wingtips optional.
| 31 ft. |
Tandem Air-Bike
Plan Set $150
Welded package $3450 (Limited Availability)
Wood Wing Kit $2975 (4 week Lead)
Includes fabric, glue, stapler and hardware.
Wood Wing Kit $2975 (4 week Lead)
Includes fabric, glue, stapler and hardware.
| Video courtesy Dave Loveman and Ultralightnews |
Tandem Air-Bike
| Useful Load |
| 500 lbs |
